angle board machine

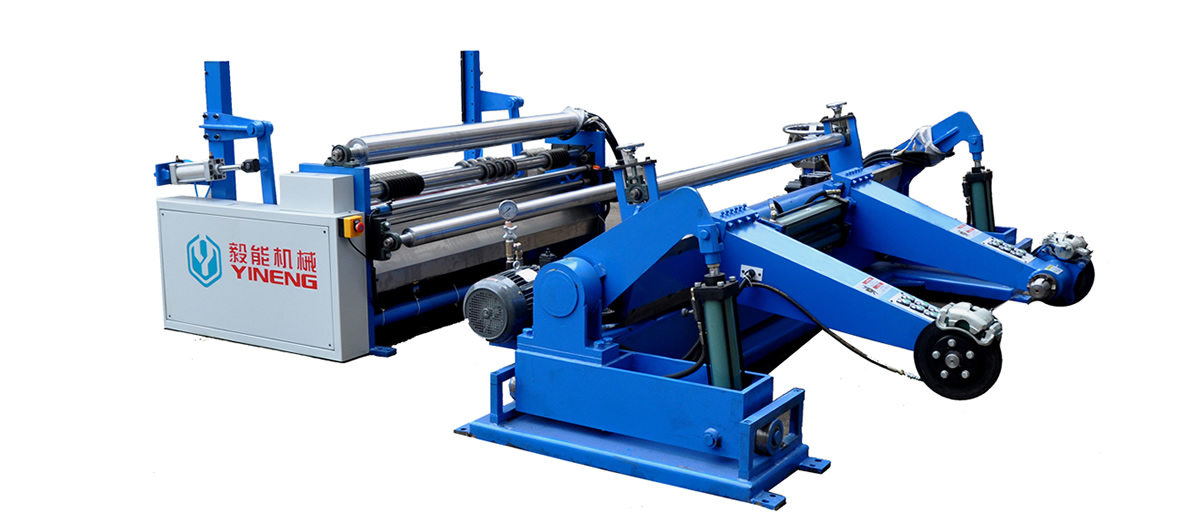

Slitter Rewinder

Slitter & Rewinder Description

Name : Slitter rewinder Item No. : FG-2

Model

FG-2

Max. Winding Dia

800MM---1600MM

Thickness of Base paper

80square meters---500g/square meters

Max.Dia of base paper

1300MM

Motivity

(Initiative Power)5KW/380V/50HZ+2.2KW Inhydraulic Pressure Paper Power

Max.Speed

200M

Specification of Machine

Length*width*height3300MM*1750MM*1500MM

Center Dia of Material Scroll

76MM

Max Dia of Minute Rolled Paper

1100MM

Min Dia of Minnute Rolled Paper

40MM

It Suit to each kind of craft paper, tea paperboard , Calico Paper, Chrome Paper minute cut.

1 . Double knives cut, Add thick bit
2 . The two sides of cutting paper tapes are very smooth,without burr
3 . Coil paper receives very solid and two sides are smooth.
4 . With correct an errow system.
5 . All operation focus on panel and easy to operate.
6 . The output is very high and each machine can supply 3 paper angle protector equipment.
7 . The machine cast iron and armor plate is very artistic and natural
8 .loading and unloading material by hydraulic pressure power, the operation is simple
9 .
The pneumatic brake control,the tensile force is equal.
 Slitter Rewinder USE:It is suitable for all kinds of Kraft-paper, Tea board-paper, Grass board-paper, Printing paper and Art-paper cutting.
